AFE RELAY 목록
모델 이미지 접점구성 정격부하

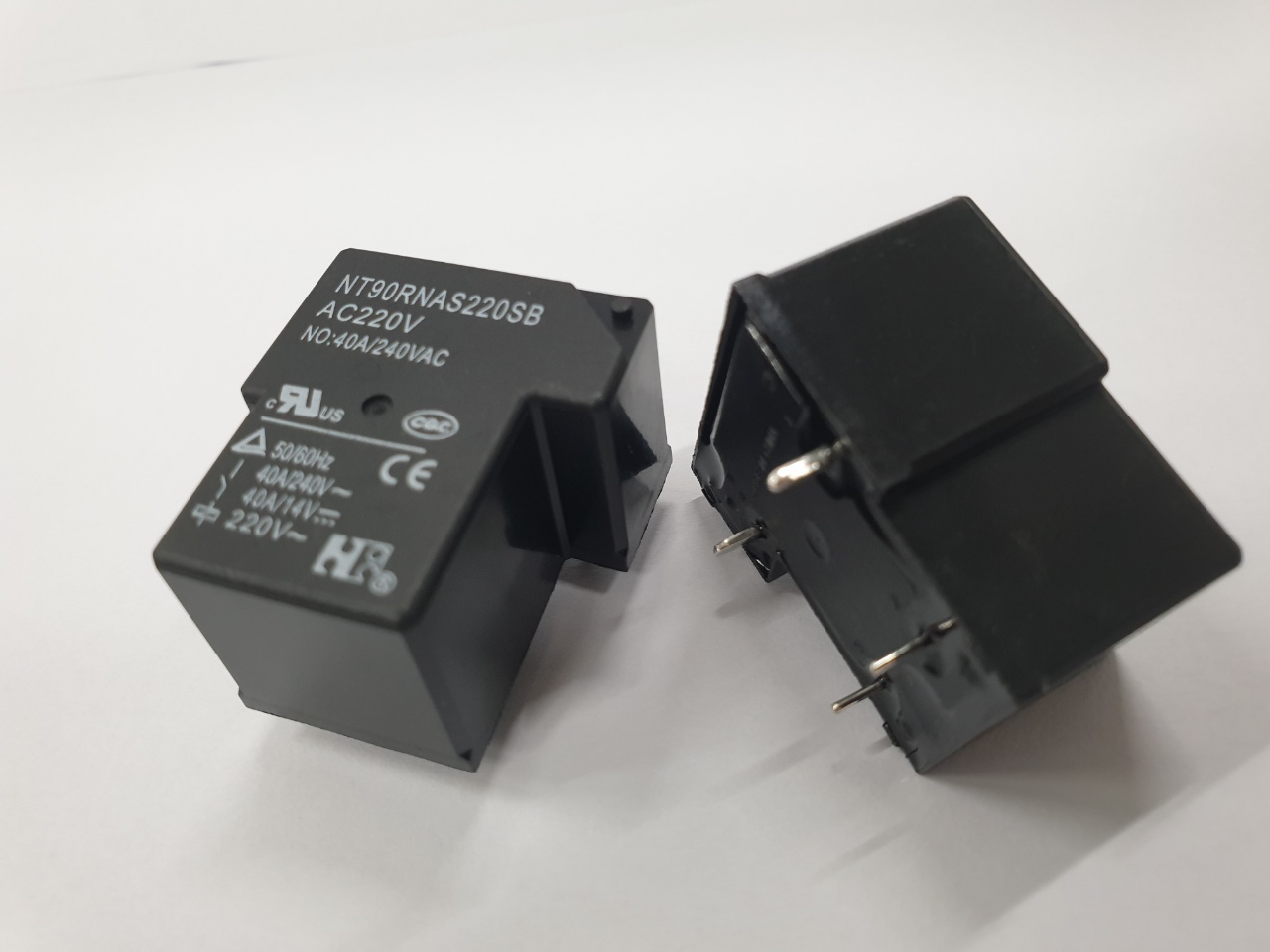

NT90-RNAS-220SB
COIL: AC220V
32.5 X 27.6 X 20.5
1A NO:40A/240VAC,30VDC;
NC:30A/240VAC,30VDC (0.9W)

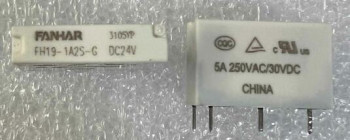

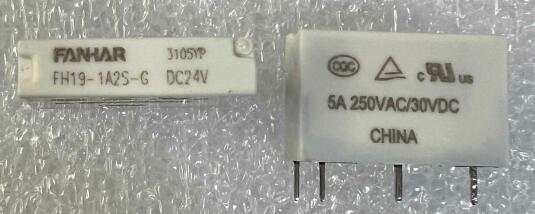

파나소닉 PA 대치품 W19
20 X 5 X 12.9
1A 5A / 250VAC
5A / 30VDC

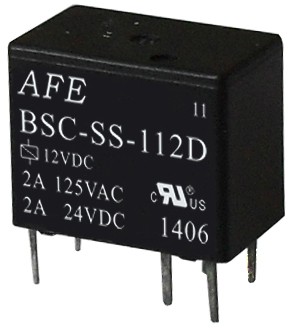

BSC
12.7 x 7.6 x 10
1A, 1C 2A at 125VAC
2A at 24VDC

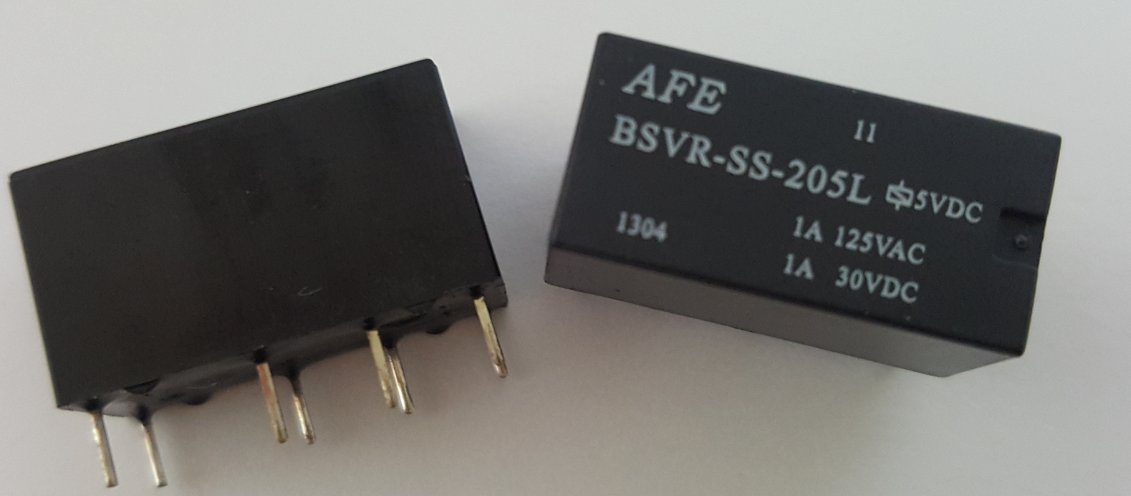

BSVR
20.4 X 9.9 X 11
2C 1A at 125VAC
2A at 30VDC
ZC4100F
15.5 x 10.5 x 11.2
1A,1C 3A at 250VAC
3A at 30VDC
BJ (D)
18.4 X 10.3 X 15.4
1A , 1C 5A at 250VAC
5A at 30VAC
3A at 250VAC
3A at 30VAC

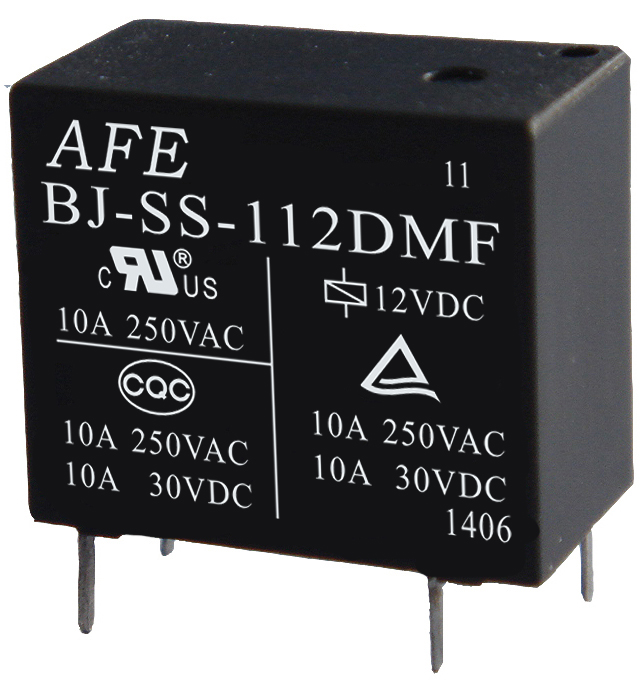

BJ (LM,DM)-F
18.2 x 10.2 x 15.5
1A 5A at 250 VAC
5A at 30 VDC
10A at 250VAC
10A at 30 VDC

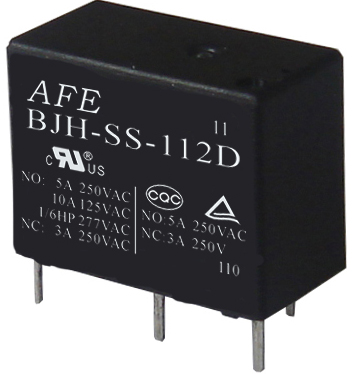

BJH
20 x 10 x 15.2
1A,1B,1C 5A/3A at 250VAC
BJS
20.5 x 7 x 15
1A 5A at 250VAC

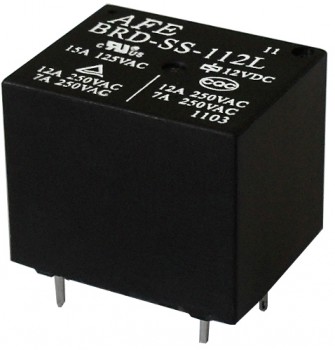

BRD
19.2 x 15.5 x 15.3
1A,1B,1C 12A at 250VAC
15A at 125VAC

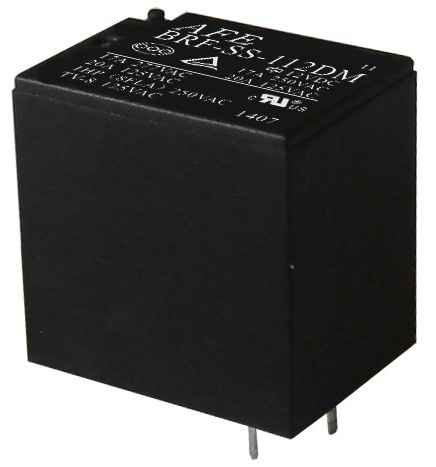

BRF
21 x 16 x 20.8
1A,1B,1C 17A at 250VAC
20A at 125VAC

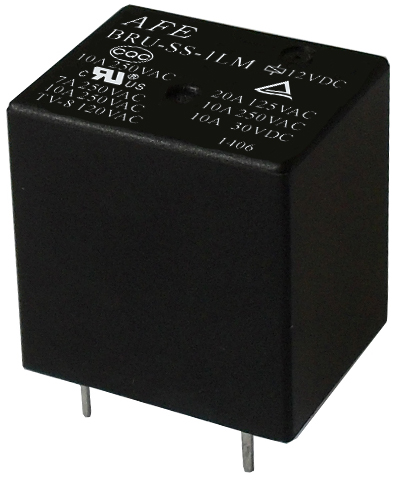

BRU
20 x 16.4 x 20.2
1A,1B,1C 10A at 250VAC
10A at 30VDC

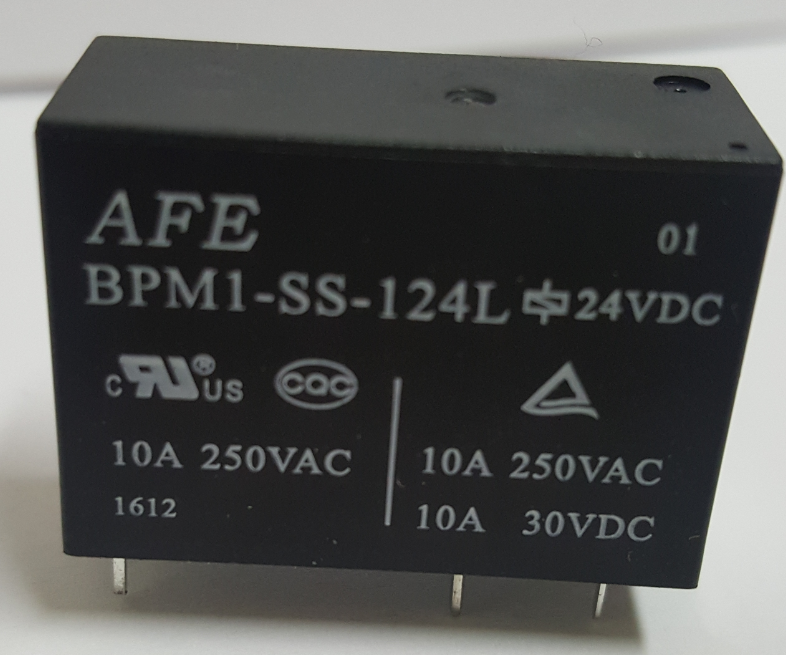

BPM1
29.3 x 12.8 x 20.4
1A, 1C 10A at 250VAC
10A at 30VDC

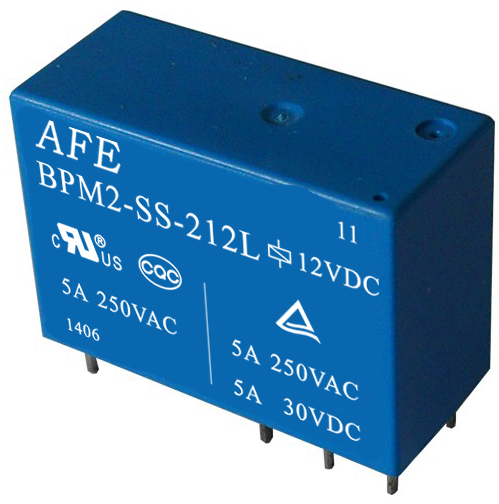

BPM2
29.3 x 12.8 x 20.4
2A, 2C 5A at 250VAC
5A at 30VDC

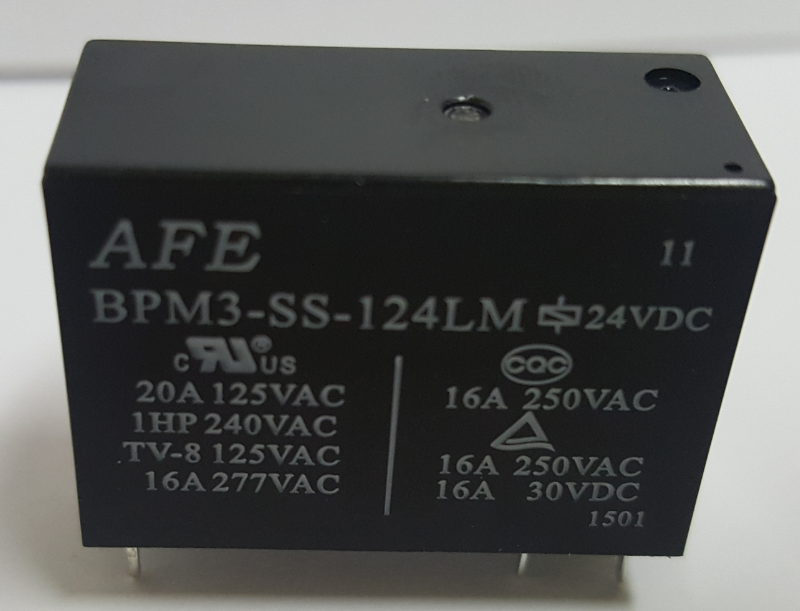

BPM3
29.3 x 12.8 x 20.4
1A, 1C 16A at 250VAC
16A at 30VDC

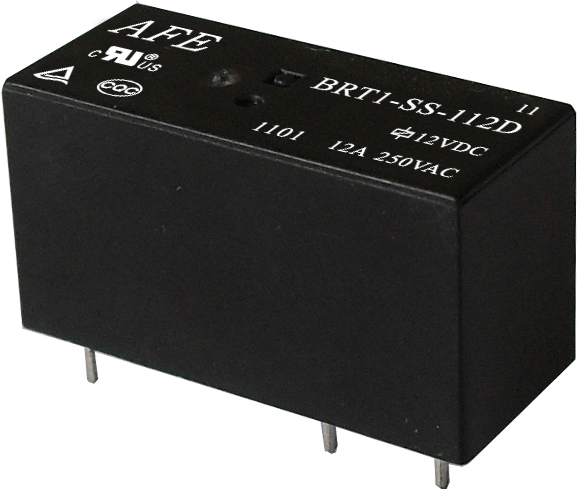

BRT1
29 x 12.7 x 15.5
1A,1B,1C 12A at 250VAC

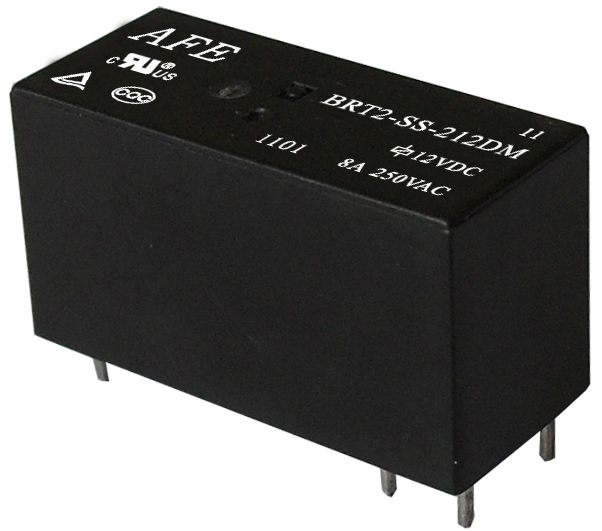

BRT2
29 x 12.7 x 15.5
2A, 2B, 2C 8A at 250VAC
12A at 250VAC

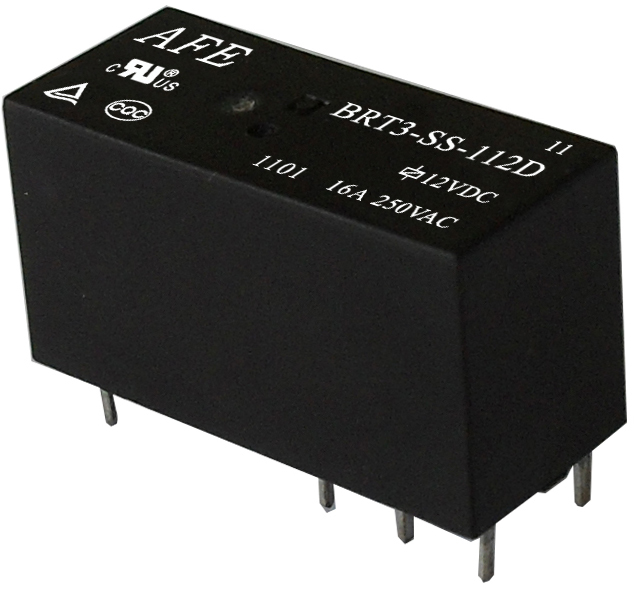

BRT3
29 x 12.7 x 15.5
1A,1B,1C 16A at 250VAC

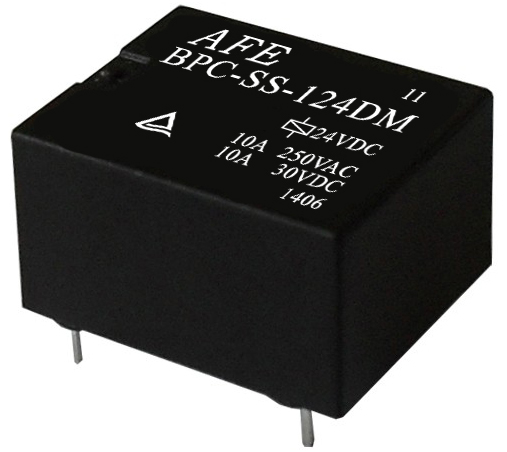

BPC
18.6 x 15.3 x 10.4
1A 10A at 250VAC 1/2 HP at 250VAC
12A at 277VAC 1/4 HP at 125VAC
12A at 30VDC
15A at 125VAC

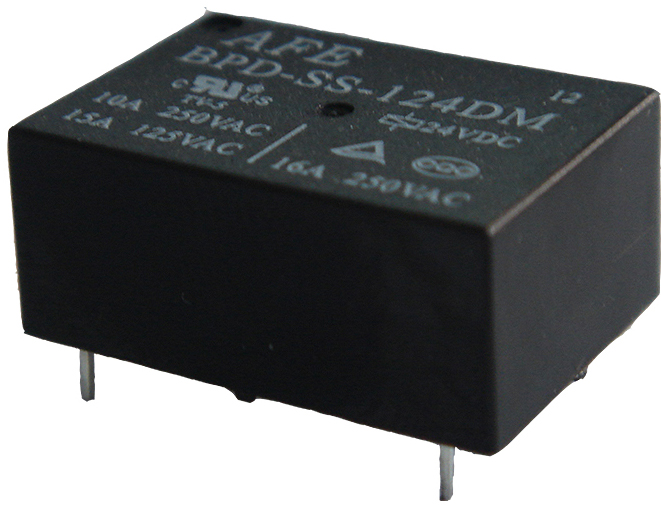

BPD
23 x 16.2 x 10.2
1A 16A at 250VAC
15A 125VAC

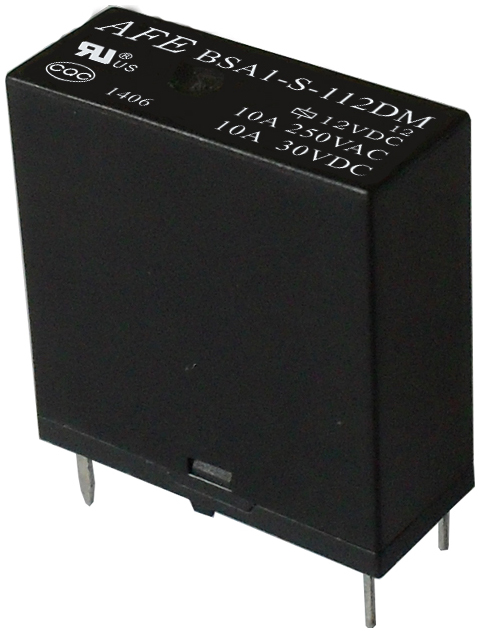

BSA1
24 x 10 x 25
1A DM…10A at 250VAC
LM …5A at 250VAC

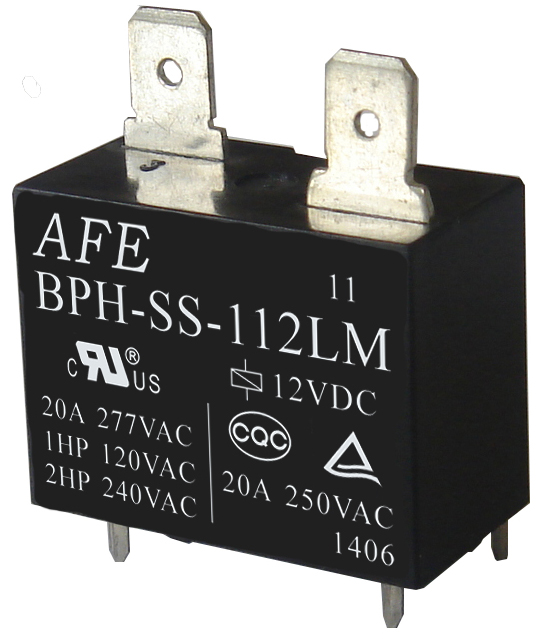

BPH
30.5x16x23.5
1A 20A at 277VAC
1HP 120VAC
2HP 240VAC

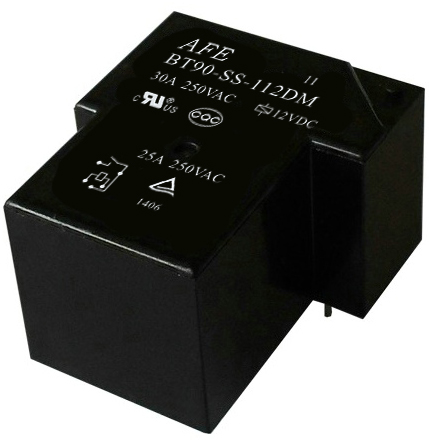

BT90
31.9 x 27.5 x 19.6
1A,1B,1C 20A/10A at 250VAC,
30A at 250VAC,
40A/20A at 250VAC,
40A/20A at 30VDC,

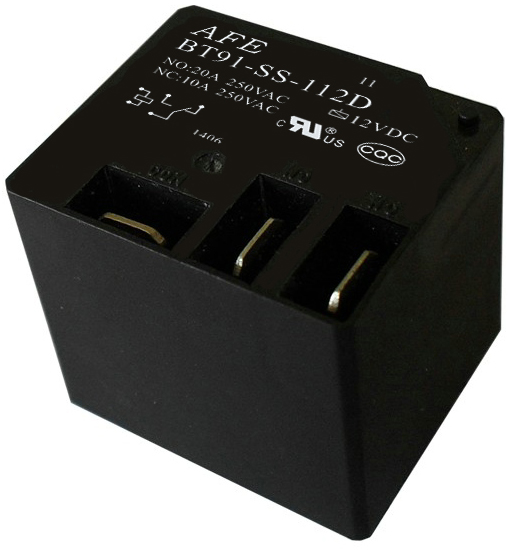

BT91
32.2 x 27 x 28
1A,1B,1C 1A :30A at 250VAC
1B :20A at 250VAC

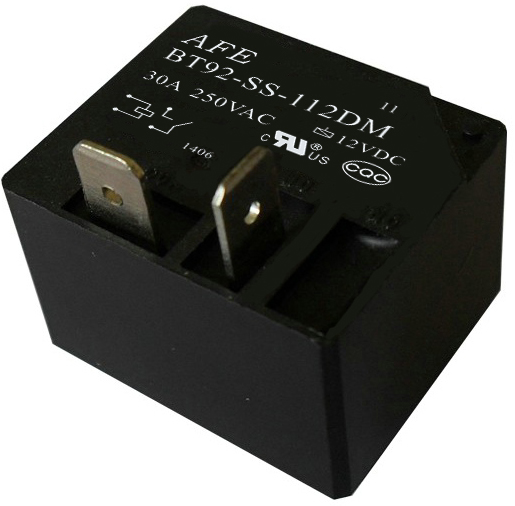

BT92
32 x 27.2 x 19.8
1A,1B,1C 1A :30A at 250VAC
1B :20A at 250VAC

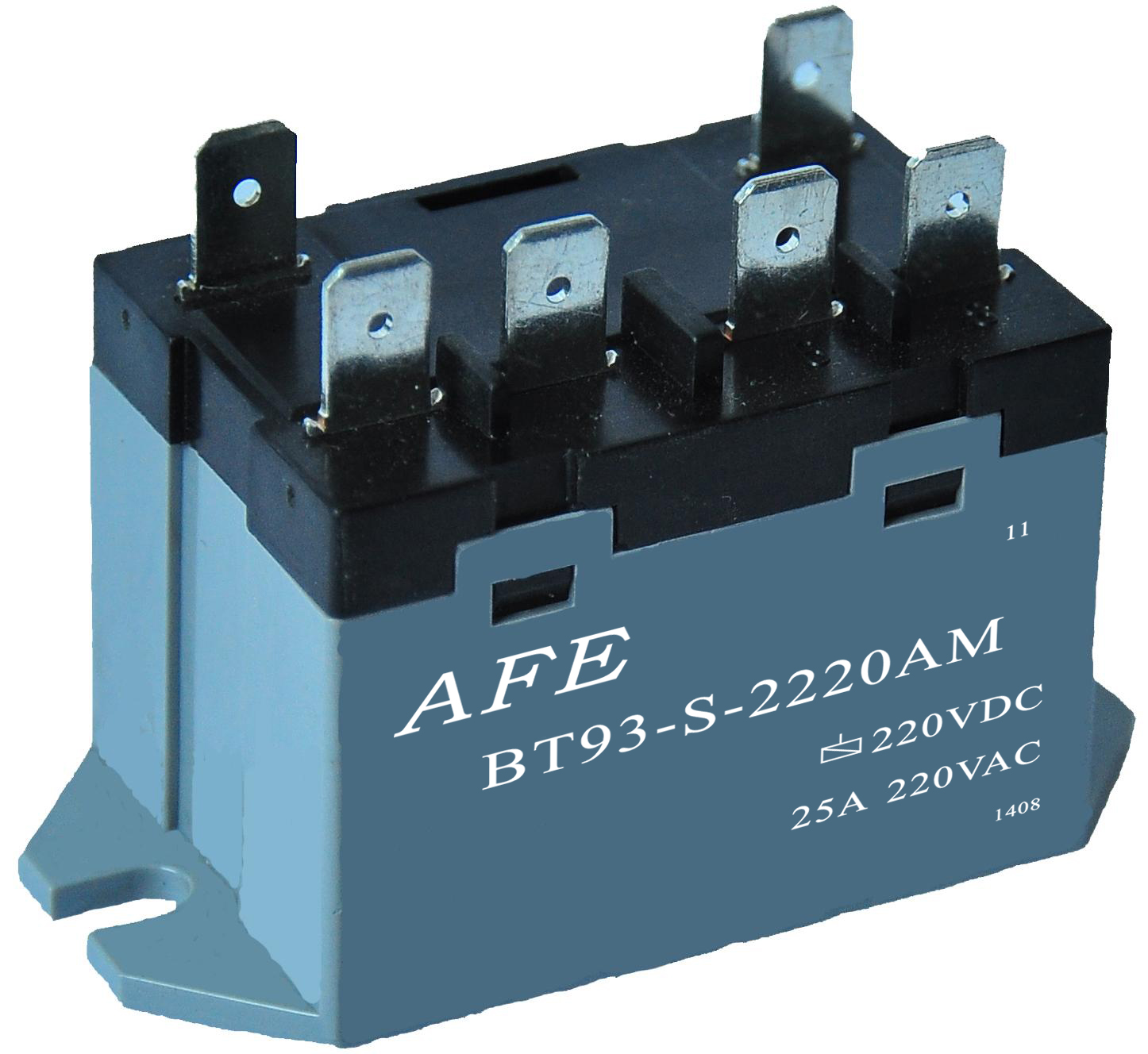

BT93
50.5 X 33.5 X 36
1A , 2A 30A at 220VAC

25A at 220VAC
